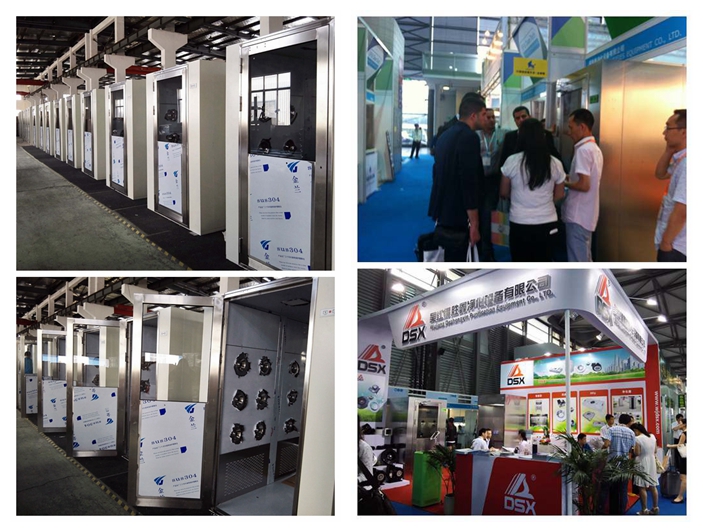

STRAIGHT THRU PASSAGE AIR SHOWER

Features for all of DSX STRAIGHT THRU PASSAGE AIR SHOWERS

Top loaded High Efficiency Particulate HEPA filter: 12” thick V-Bank Hi-Flow minipleat design 99.99% efficient @ 0.3 micron in an anodized aluminum frame, PSL tested in accordance with IEST Standards.

Standard construction is Corrosive Resistant Polypropylene, Epoxy Painted Steel, 304 or 316L Stainless Steel units are also available.

High Efficiency direct drive220/380V 3-Phase(Or 220V 1-Phase) motor blowers. Motors/Blowers are selected based on customer voltage requirement.

Adjustable DSX air nozzles on walls and ceiling shall be white plastic construction sized and spaced to provide an average of 6000 - 7,000 fpm air flow at the face of the nozzle.

Return air registers at floor level on walls shall be anodized aluminum with 1” pleated MERV 7 prefilters.

Recessed 2 pin T-8 fluorescent lighting 60 ft. candle in interior ceiling with prismatic refractive lens cover.

Anodized aluminum entry and exit doors with push/pull hardware, hydraulic door closures and acrylic, polycarbonate or safety glass inserts.

A Programmable Logic Controller (PLC) shall be used to control the sequence of operation of the Air Shower.

An Emergency Off button (EMO) shall be located inside and outside of the Air Shower in a conspicuous location.

Activating the EMO switch shall cause the cycle to immediately end, and release all interlocks. Lights shall remain on.

Door sensors shall be 24 volt DC magnetic reed switches. Door interlocks shall be 24 volt, located in the doorjamb. All locks shall automatically release upon loss of power or when the (EMO) button is pressed.

The Air Shower shall be a high velocity, low pressure type system in accordance with Federal Standard 209E .

Many options are available for this air shower( and other clean room equimpment) such as a Constant purge option, raised floor or sliding doors. Consult DSX trained experienced sales engineering staff for more details.

DSX air shower room Standar size and specificaton:

Model	Air shower
	DSX-FL-1200	DSX-FL-1400	DSX-FL-1500
External dimensions (mm)	1200x1000x 2150	1400x1000x 2150	1400x1500x 2150
Dimensions in WxDxH(mm)	800x920x 1950	800x920x 1950	800x1400x 1950
Material for case	Cold rolled steel with powder coated , SUS#201 or SUS#304
Suitable person	1	1	2
Nozzles	6(one side)	12(two sides)	18(two sides)
Blow power(W)	1100	2200	2500
HEPA filter’s dimensions	610x610x50 One piece	610x610x69 two piece	610x610x69 two piece
Nozzle diameter	30mm
Air shower time	0~99s Adjustable
Spurt wind speed	25m/s(+-20%)
Voltage	380V/50Hz/3Ph; 220V/50Hz/1Ph
hepa Filter efficiency	Above 99.99% efficient on 0.3um particles
Control system	LCD control panel, electronic interlock and automatic blowing
