Product information

Large Volume FFU Fan

product name: Large Volume FFU Fan
Product number: DSX-500
Products Exhibitors: DSX
Product Documentation: No Related Documents

a brief introdction

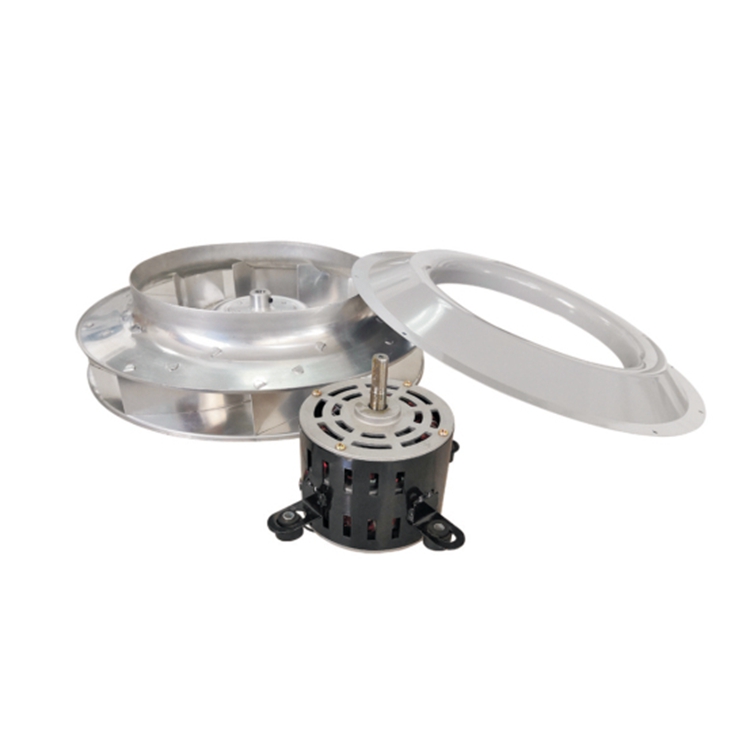

DSX-500 Large Volume FFU Fan is suitable for big size FFU. One Fan Filter Unit equipped one large volume fan can reach the volume requirement, lower the noise and reduce the cost.


Large Volume FFU Fan  Detailed description of

Application: Big size Fan Filter Unit, Refrigeration, ventilation & purification equipment

DSX-500 FFU fan is suitable for 1175*1175 Fan Filter Unit and two-person clean bench etc.

Features: low noise, large volume

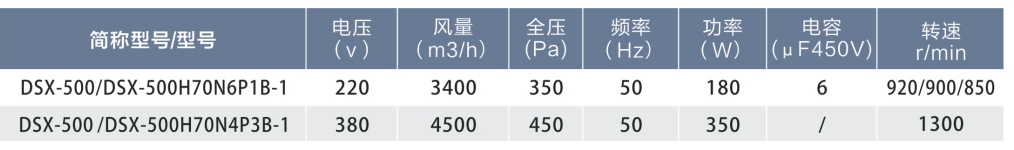

Parameters:

Item No. DSX-500N

Voltage: (V): 220/380

Power(W): 180

Capacitance(UF/450):6

Volume(m3/h):3400

Speed(r/min):920/900/850

Total Pressure(Pa):350

Noise(dB):60

Frequency(Hz):50
