Product information

Biological safety cabinet

  • Products name: Biological safety cabinet
  • Products nubmer:BSC-1000-Ⅱ-A2
  • Products Exhibitors:DSX
  • Product Documentation:
你添加了1件商品 查看购物车
a brief introdction
Biological safety cabinet(BSC-1000-Ⅱ-A2/BSC-1300-Ⅱ-A2) is used as safety isolation equipment for biological and other laboratories. It is applied to the protection of the personnel, sample and environment.

Biological safety cabinet

的详细介绍

The DSX Biological safety cabinet can meet the first, second and third risk factor grade of pathogen operated. Ⅱ class cabinet’s open front draw in negative pressure air  to protect people’s safety. The vertical air flow through the Hepa filter is used for protecting the safety of sample. Leaving air also flows the Hepa filter to prevent the diFFUsing of harmful airborne particulates &aerosol, and protect the operating people, sample and environment. We manufacture cabinet according to the NSF-49 & JG170-2005 standard strictly. Excluding the layer analyzing and particle counter ways, we also use microbiological ways to evaluate the performance of the cabinet.


Biological Safety Cabinet parameters

Item No.

BSC-1000-Ⅱ-A2/BSC-1300-Ⅱ-A2

洁净等级Cleanliness

100 class/ISO5 class

菌落数Clump count

≤0.5个/皿/时(90mm培养平皿)
≤0.5pc/vessel/hour(φ90mm  foster dish)

气密度air tightness

500Pa压力下泄露 ≤10%(30分钟内)
under 500Pa,can leak≤10% (within 30 mins)

气流 airflow

垂直层流负压设计,符合CLASSⅡTYPA A2型生物**柜标准
 Vertical laminar flow and negative pressure design, which conforms to the CLASSⅡTYPA A2 type of biological safety cabinet standard

控制系统control system

智能化电脑控制,超过**位置具有声,光报警
Intelligent Computer Controlled System, There will be voice & ray alarm when exceeds the safety position

台面及移门 mesa and sliding door

不锈钢工作台面,台板可移动,钢化移门玻璃上下灵活方便
S.S mesa, table plate can slide, tempering slide glass door is flexible & convenient

内胆liner

不锈钢内胆三方一体成型,内胆亚光,圆弧处理
SS liner, Three parties together,yogon &arc solution

噪声Noise

≤63dB

振动/半峰值Half peak value

≤5μm

照度 luminance

≥650Lx

电源Power supply

AC, Single phase 220V/50Hz

*大功耗Maximum Power consumption

0.6kw

送风风速Down flow Air

0.25~0.40m/s

风机 air blower

低噪声高效风机,满足长时间工作的要求
Low noise high efficiency fan can work in a long time

吸入风速Inflow Air

≥0.5m/s

重量Weight

220/260kg

工作区尺寸Working Dimension

1000w*600d*600hmm/1300w*600d*600h

外形尺寸Dimension

1200w*815d*2040hmm/1500w*815d*2040h
(上下分体two-piece unit)

荧光灯/紫外灯规格及数量fluorescent lamp/UV lamp data

21W×③30W×①

备注remark

30% air exhaust

Different specifications and size can be customized according to individuals’ requirements!

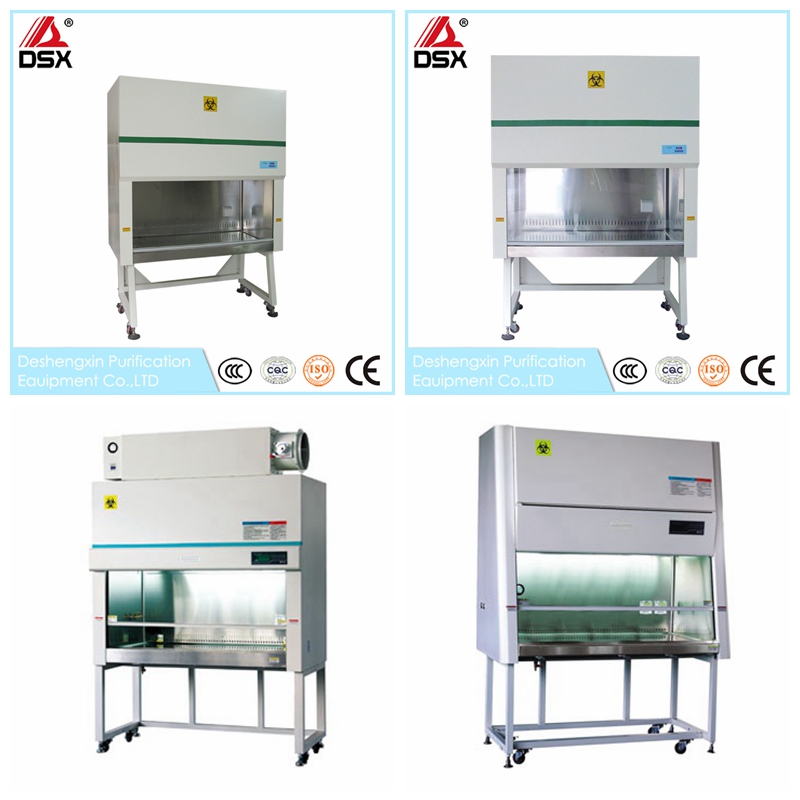

 Product Picture


Certifications

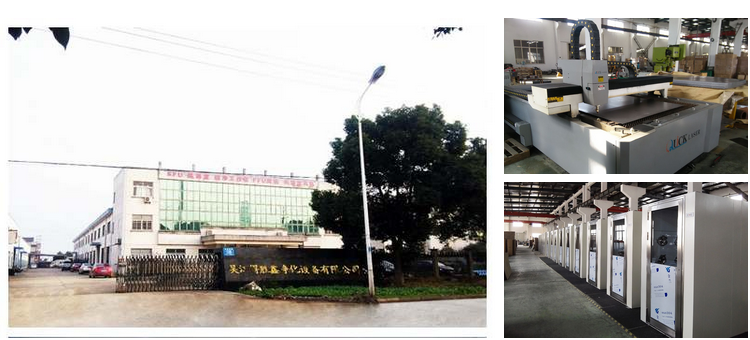

Our Company




Packing & Delivery

Exhibition

WHY US?
1.Factory direct sale, OEM, ODM available , R&D department available .
2.Experienced manufacture, own provided motor, fan, enclosure etc., Controlling quality, price and delivery term much better.
3.Strictly testing equipment, full-experienced technicians ,quality guaranteed .
4.good after-sale service.

5.we are the ISO9001 approval enterprise. Our products obtain CCC and CE certificate as well.
