Product information

Cleanroom Pass Thru Box

product name: Cleanroom Pass Thru Box
Product number: DSX-ASPB01
Products Exhibitors: DSX
Product Documentation: No Related Documents

a brief introdction

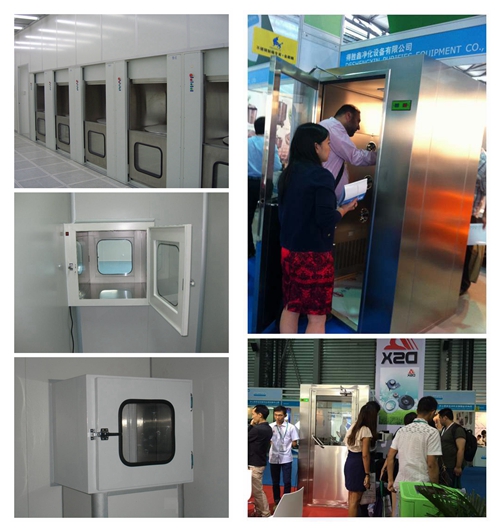

Cleanroom Pass Thru Box is a frequently-used equipment in clean room. It removes dust particles on the surface of the goods effectively to so that dusts will not be brought in to the clean room by goods.


Cleanroom Pass Thru Box  Detailed description of
Deshengxin offer the Cleanroom Pass Thru Box  that are designed to be floor mounted between and Anteroom and Cleanroom when a Straight Thru configuration is required.
  Air shower Pass Box with HEPA filters provide an effective means of removing surface contaminants from personnel entering a cleanroom or controlled environment.   Completely self-contained, they function effectively in an uncontrolled area.
Special custom products are available.

  size and specificaton:


Model


 Air shower

DSX-FL-1200

DSX-FL-1400

DSX-FL-1500

External dimensions (mm)

1200x1000x 2150

1400x1000x 2150

1400x1500x 2150

Dimensions in WxDxH(mm)

800x920x 1950

800x920x 1950

800x1400x 1950

Material for case

Cold rolled steel with powder coated , SUS#201 or SUS#304

Suitable person

1

1

2

Nozzles

6(one side)

12(two sides)

18(two sides)

Blow power(W)

1100

2200

2500

HEPA filter’s dimensions

610x610x50 One piece

610x610x69 two piece

610x610x69 two piece

Nozzle diameter

30mm

Air shower time

0~99s Adjustable

Spurt wind speed

25m/s(+-20%)

Voltage

380V/50Hz/3Ph; 220V/50Hz/1Ph

hepa Filter efficiency

Above 99.99% efficient on 0.3um particles

Control system

LCD control panel, electronic interlock and automatic blowing

Non-standard design and dimensions are available.
