Product information

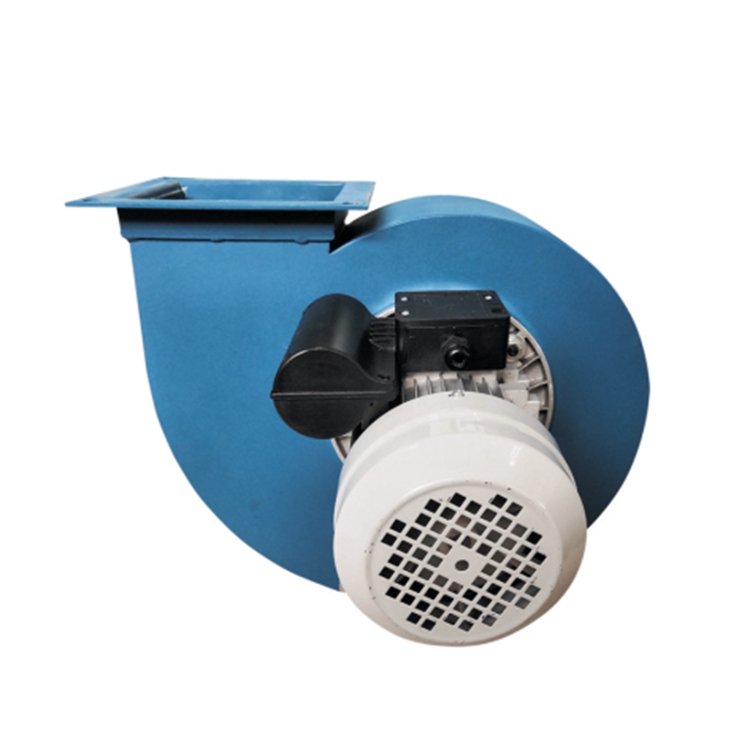

DSX-245 Centrifugal blower / fan

product name: DSX-245 Centrifugal blower / fan
Product number: DSX-245
Products Exhibitors: DSX
Product Documentation: No Related Documents

a brief introdction

Deshengxin centrifugal blowers Widely used in every occasion, such as food, temperature-controlled and aeration and etc.


DSX-245 Centrifugal blower / fan  Detailed description of

The performance characteristics of DSX centrifugal fans:
1)High efficiency, low noise, small vibration, compact structure, beautiful appearance.

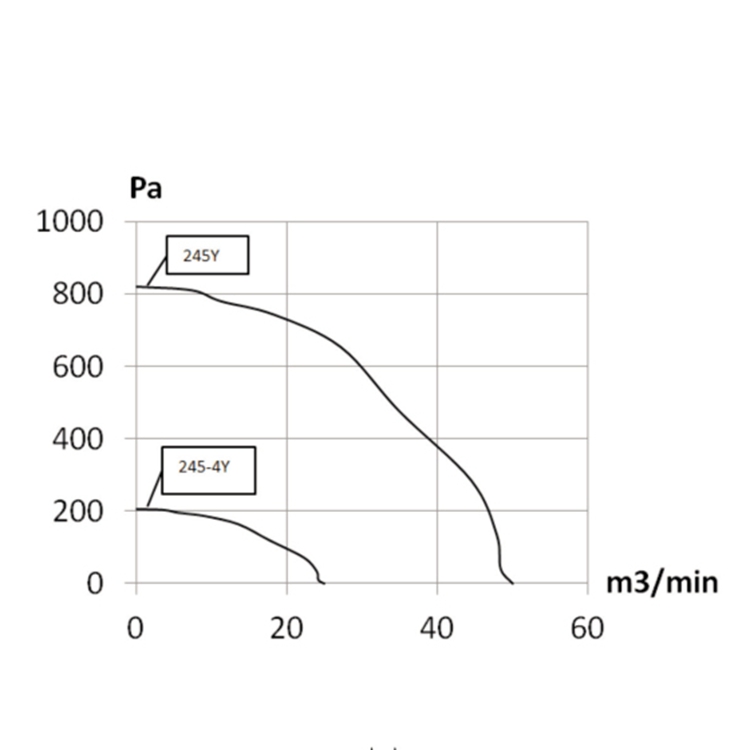

2) Centrifugal fan is actually a kind of variable flow constant pressure device. When the rotating speed is constant, pressure and flow theory of centrifugal fan curve should be a straight line.
3)The pressure produced in the centrifugal fan is affected by the large inlet temperature or density changes. For a given air inflow, the highest inlet temperature (lowest air density) when the lowest pressure. For a given pressure and the flow characteristic curve, there is a power and flow characteristic curve. When the blower run at constant speed for a given flow rate, the required power of inlet temperature, the higher.

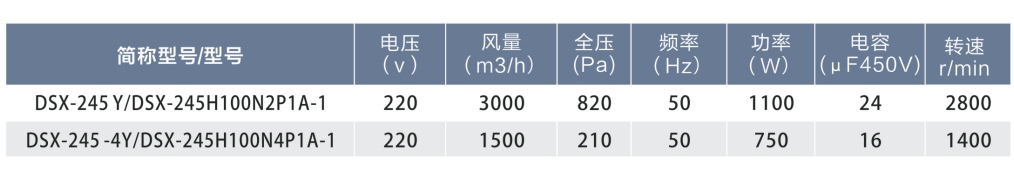

Item No.

Rated Volume

Total Pressure

Voltage

Power

Speed

DSX-245

1800M3/h

900 Pa

380V

550 W

2800r/min

DSX-7

1250M3/h

1400Pa

380V

750W

2800r/min

DSX-200

1500M3/h

1000Pa

380/220V

600W

2800r/1400/min

DSX-146

800 M3/h

350Pa

220V

180W

1100/min

DSX-150

500 M3/h

420Pa

380/220V

240W

2650r/min

DSX-160

950M3/h

850Pa

380/220V

370W

2800r/1400/min

DSX-195

1200 M3/h

900Pa

380/220V

550W

2800r/1400/min

DSX-240

2500M3/h

1200Pa

380/220V

750W

2800r/1400/min

DSX-240NA

2500M3/h

1200Pa

380/220V

750W

2800r/1400/min

DSX-5

950M3/h

1200Pa

380V

550W

2800r/min

DSX-240-2

3200M3/h

470Pa

380/220V

500W

1250 r/min
